SV10

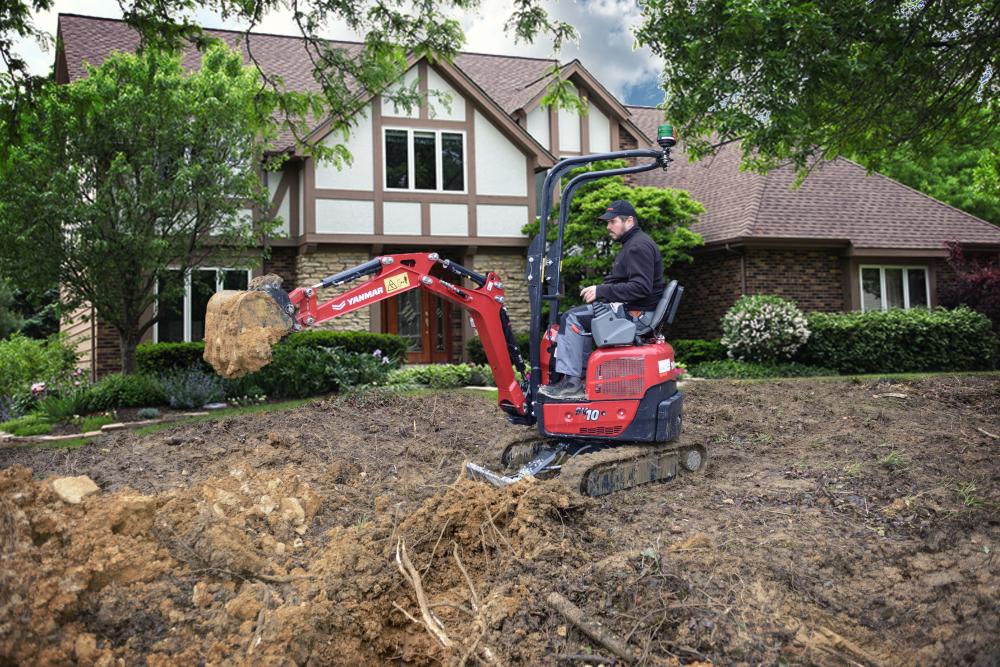

Compact, versatile and intuitive, the new SV10 is purpose-built for indoor work, landscaping and all activities requiring a truly ultra-narrow machine. Able to pass through standard EU doorways and operate confidently in tight spaces, it combines variable track width with a wide working range for impressive flexibility. Improved ergonomics with side levers ensure intuitive operation, while Yanmar-trusted reliability and a tilting engine bonnet make daily maintenance quick and effortless.

Operating weight (with operator, qh & bucket): 1180 kg

Transport weight (without qh & bucket): 1055 kg

Engine: Yanmar 3TNV70-WBVB1

Net Power: 9,2 kW –2000 rpm

Gross Power: 9,3 kW –2000 rpm

Displacement: 0,854 litre

Maximum torque: 47,6 –51,8 N.m (1500 +/-100 rpm)

Maximum pressure: 190 bar

1 double variable displacement piston pump

2 x 11,14 l/min

1 gear pump 6.79 l/min

Travelspeed [Low / High]: 1,8 / 3,6 km/h

Digging force [Arm]: 5.2 kN

Digging force: 7,6 kN

Overall width: 740 mm / 990 mm

Max. digging depth: 1955 mm
